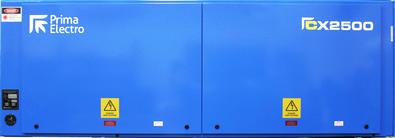

The Convergent CX Series lasers are 2.5 kW and 3.0kW average power Fast Axial Flow CO2 lasers derived from the field-proven CP Series lasers. The CX Series lasers are based on a cost effective, eight lane resonator that provides a high quality beam ideal for cutting thin and thick metals and non-metals.
Typical Cutting Capability
maximum thickness using 7.5 inch focal length lens
| |
CX2500 |
CX3000 |
| Mild Steel |
15 mm |
20 mm |
| Stainless Steel |
8 mm |
10 mm |
| Aluminum |
5 mm |
8 mm |
Mechanical Specifications
| |
CX2500 l CX3000 |
| Dimensions Width |
850 mm |
| Height |
887 mm |
| Length |
2551 mm |
| Weight |
950 kg (2,095 lbs) |
| Connections Water |
1.25 inch hose barb (x2) |
| Gas Inlet |
6 mm tube fitting (x4) |
| Exhaust |
0.5 inch tube fitting |
| Drain |
8 mm tube fitting |
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
